Custom Pneumatic UPVC Flange Diaphragm Valve Suppliers, Factory, Manufacturing Company

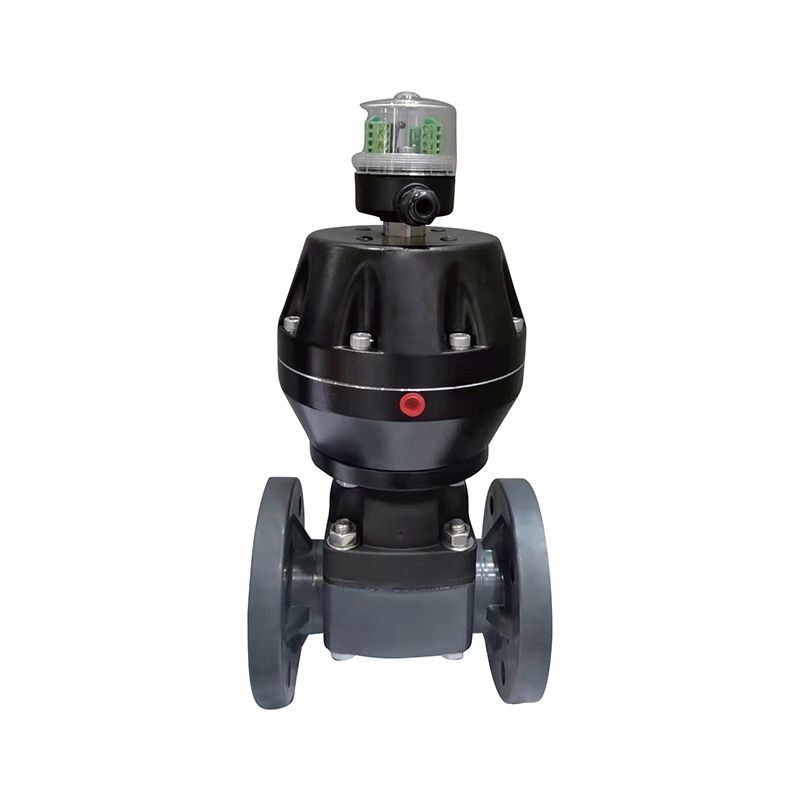

The pneumatic UPVC flange diaphragm valve is constructed from UPVC material, which resists strong acids and alkalis and does not rust or scale, making it suitable for handling various corrosive media. The valve body has a compact structure, is lightweight, and is easy to install and maintain, reducing the load on the piping system. The diaphragm structure ensures a tight seal, effectively preventing media leakage and ensuring the system's safe and stable operation. Pneumatic control enables rapid switching, responsive operation, and easy remote control and automation. The material complies with national hygiene standards, making it suitable for food and pharmaceutical applications requiring high hygiene standards.

It adopts a corrosion-resistant valve body and corrosion-resistant diaphragm, no stuffing box structure, the throttling element is elastic diaphragm, and the flow channel of the valve body is smooth. Therefore, the pneumatic membrane diaphragm valve has the advantages of low stress, large flow, no external leakage, convenience, reliability, and fire and explosion prevention. It is widely applicable to weak acid, weak alkali, weak corrosion, high viscosity, containing particles and Flow regulation with fiber and toxic and nonpolluting media.

NO	Name	Material
1	Body	UPVC
2	Cover	UPVC
3	Diaphragm	EPDM+F46
4	Disc	UPVC
5	Cylinder	Aluminum alloy
6	Piston	Aluminum alloy
7	Stem	Stainless steel 304 / 45#
8	Connection mode	Flange

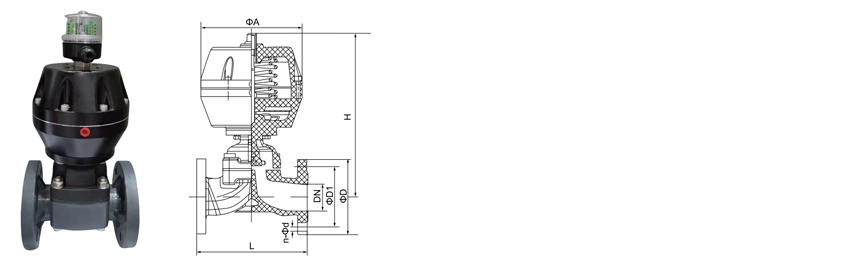

SIZE/NOM.			dn20	dn25	dn32	dn40	dn50	dn63	dn75	dn90	dn110	dn140	dn160	dn225
			(DN15)	(DN20)	(DN25)	(DN32)	(DN40)	(DN50)	(DN65)	(DN80)	(DN100)	(DN125)	(DN150)	(DN200)
			(1/2")	(3/4")	(1")	(1-1/4")	(1-1/2")	(2")	(2-1/2")	(3")	(4")	(5")	480	(8")
DIN ANSI JIS	L		125	135	145	150	180	210	250	300	350	400	280	570
	D		95	105	115	135	145	160	180	195	215	245	240	335
	D1	HG	65	75	85	100	110	125	145	160	180	210	240	295
		JIS	70	75	90		105	120	140	150	175	210	240	290
		DIN	65	75	85		110	125	145	160	180	210	240	295
		ANSI	60	70	80		100	120	140	152	190	216	8	298
	n		4	4	4	4	4	4	4	8	8	8	23	8
	Φd		14	14	14	18	18	18	18	18	18	18	370	23
	A		110	110	110	140	170	170	200	230	260	310		490
	H		15	220	225	240	285	307	327	390	470	637
	Valve weight (KG)		2	2.3	2.5	3	5	8	13	16	24	30
