Custom UPVC/CPVC 45°Elbow Suppliers, Factory, Manufacturing Company

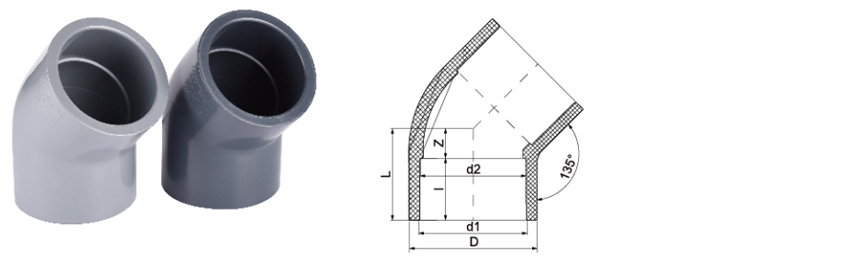

UPVC/CPVC 45° Elbow is widely used in building, industrial, and household water systems. Made from premium UPVC or CPVC materials, it offers corrosion resistance and pressure resistance, effectively withstanding chemical erosion.

The elbow is designed at a 45° angle, enabling flexible pipe redirection, reducing fluid resistance, and improving flow efficiency. It is lightweight, durable, and easy to install, suitable for various piping systems and ensuring firm connections for hot and cold water pipelines and other fluid transportation systems.

SIZE/NOM.			dn20	dn25	dn32	dn40	dn50	dn63	dn75	dn90	dn110	dn140	dn160	dn225	dn280	dn315
			(DN15)	(DN20)	(DN25)	(DN32)	(DN40)	(DN50)	(DN65)	(DN80)	(DN100)	(DN125)	(DN150)	(DN200)	(DN250)	(DN300)
			(1/2")	(3/4")	(1")	(1-1/4")	(1-1/2")	(2")	(2-1/2")	(3")	(4")	(5")	(6")	(8")	(10")	(12")
DIN	d1		20.3	25.3	32.3	40.3	50.3	63.3	75.3	90.3	110.4	140.5	160.5	226.25	281.45	316.85
	d2		20.1	25.1	32.1	40.1	50.1	63.1	75.1	90.1	110.1	140.2	160.2	225.05	280.05	315.05
	UPVC	D	26.7	32	41	50	63	74.6	88	104	126.8	164	184.8	254	306	345
		L	23	26	31.5	38.5	46	54	67	72	86	114	125	178	212	233
		I	17	19	23	27	32	38	44	51	61	76	86	119	148	165
	CPVC	D	26.5	32	41	50.2	62.8	79	91	108.6	132.4	164.4	188.6	254	306	345
		L	23	26	31	38	46	56	65	76	91	114	129	178	212	233
		I	16.5	19	22.5	26.5	31.5	38	44	51	61.5	76.5	86.5	119	148	165
ANSI	d1		21.51	26.87	33.62	42.4	48.54	60.65	73.39	89.31	114.81	141.81	168.81	220.06	273.81	324.61
	d2		21.25	26.6	33.3	42.06	48.18	60.27	72.9	88.8	114.21	141.11	168	218.9	272.67	323.47
	D		30	35.5	43.6	53	60	72.8	88	108	132	164	191	254	306	345
	L		28.7	33.5	37	41.8	47	55	62	70.5	86	108.5	121.2	178	212	233
	I		22.2	25.5	28.6	31.8	35	39	44.5	50.5	60	70	76.2	101.6	148	165
JIS	d1		22.4	26.45	32.56	38.63	48.73	56.82	58.63	89.66	114.27	140.22	165.16	216.68	267.21	318.66
	d2		21.75	25.7	31.71	37.67	47.76	55.77	57.67	88.63	113.2	139.01	163.9	214.6	264.88	315.88
	D		30	35.5	43.6	53	60	72.8	88	108	132	164	191	254	306	345
	L		28.7	33.5	37	41.8	47	55	62	70.5	86	108.5	121.2	178	212	233
	I		22.2	25.5	28.6	31.8	35	39	44.5	50.5	60	70	76.2	101.6	148	165
